The Birdie 10 Golf Simulator Enclosure is our compact, single-stall bay designed for golfers who want a premium look and feel without giving up the garage. At 10' wide, 8'2" tall, and 5' deep, it’s sized to fit neatly in one garage stall or a smaller sim room while still giving you a true “sim bay” experience with a 4:3, 4K-ready impact screen and a heavy-duty steel frame.
Despite its smaller footprint, the Birdie 10 includes the same premium materials as our larger enclosures—a 4K triple-layer impact screen, velvet-lined walls with a vinyl exterior, and a 1-1/4" powder-coated steel frame—at a price that competes with most value enclosures.
Compact 10' Simulator Bay

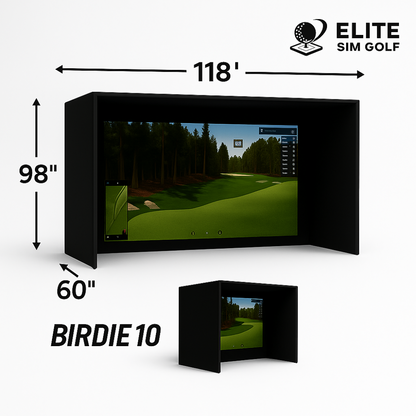

10' wide, 8'2" tall, and 5' deep—ideal for single-car garages and tighter sim rooms where space is at a premium.
4:3 4K-Ready Screen
Designed around a 4:3 aspect ratio so your 4K or 1080p projector fills the hitting area with a tall, immersive simulator image.
4K Triple-Layer Impact Screen
ULTRA premium triple-layer impact screen engineered to handle repeated ball strikes while keeping the image bright and crisp.
Velvet-Lined, Light-Absorbing Walls
Premium velvet inner lining with a durable vinyl exterior reduces light bleed and frames the image for a clean, professional look.
Seamless Screen Integration

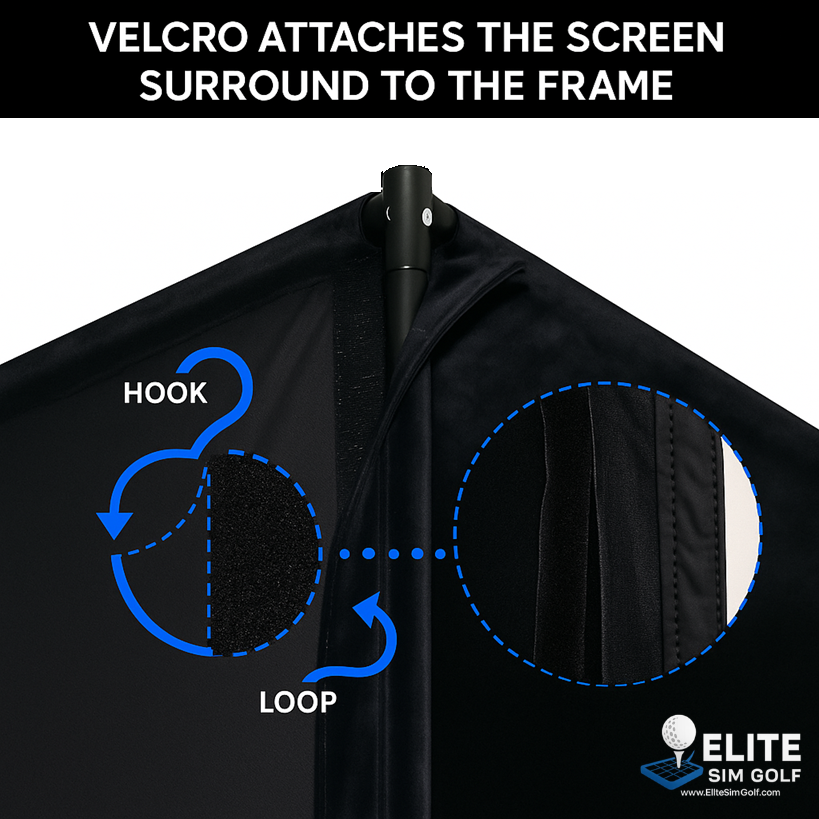

Velvet enclosure flaps overlap the edges of the impact screen using hook-and-loop fasteners to create a smooth, finished border.
Heavy-Duty Steel Frame
1-1/4" (32 mm) thick-wall powder-coated steel tubing with anti-collision padding along the top rail for durability and protection.
Fast, Tool-Free Assembly
Snap-together frame design; most Birdie 10 installs can be completed in 45–60 minutes, with two people recommended but not required.
The Birdie 10 is our second most popular enclosure size because it fits where many larger bays won’t. The 10' width and 8'2" height are perfect for a single garage stall or smaller sim rooms, leaving space for a vehicle or storage alongside your setup while still giving you a comfortable hitting window.
If you’ve been told you don’t have enough room for a “real” simulator, the Birdie 10 is designed to make a true golf studio possible in tighter spaces.
Unlike many home-theater-style setups built around a 16:9 image, the Birdie 10 is built around a 4:3 aspect ratio that’s ideal for golf simulation. That means:
Combine the 4:3 layout with the 4K triple-layer impact screen and you get a bright, detailed image that looks great whether you’re grinding on the range or playing a full virtual round.
The Birdie 10 enclosure uses a premium velvet inner lining backed by a rugged vinyl exterior. The dark velvet helps absorb stray projector light, improves perceived contrast, and visually frames the hitting area so your eye stays on the screen. Matching velvet flaps wrap the edges of the impact screen using hook-and-loop fastening, creating a smooth transition from wall to screen and helping to reduce light bleed.
Just like our larger models, the Birdie 10 is built on a 1-1/4" (32 mm) thick-wall powder-coated steel frame. The tubing locks together to form a rigid structure that keeps the screen and enclosure panels properly tensioned. Anti-collision padding along the top rail gives you extra protection in case of a high wedge or full-swing mishit.
The Birdie 10 is designed to go together quickly with minimal hassle. The frame sections snap together without tools, and most customers can complete the build in about 45–60 minutes. Two people are recommended for the easiest setup, but the design is straightforward enough that a single installer can manage it with a bit of extra time and care.
Please note: Hitting mat and landing pad are not included with simulator enclosures and are sold separately, so you can choose the hitting surface that best fits your budget, space, and performance needs.
| Core Dimensions | |
| Model | Birdie 10 Golf Simulator Enclosure |
| Screen Aspect Ratio | 4:3 (optimized for golf simulation) |
| Outside Frame Dimensions | Approx. 10' W × 8'2" H × 5' D |
| Simulator Footprint – Enclosure | Approx. 10' W × 5' D floor space for the enclosure frame |
| Typical Room Fit (Guideline) | Ideal for single-car garages and smaller sim rooms with ~9' ceilings or higher |
| Impact Screen & Image Area | |
| Impact Screen Panel Size | Approx. 143" W × 96" H |
| Recommended Viewable Image Area | 4:3 image sized within the panel, Approx. 112" W × 87" H (141" Measured Diagonally), centered with a small velvet border. Actual viewable area may vary slightly based on installation and projector throw. |
| Screen Construction | 4K ULTRA premium triple-layer impact screen |
| Frame & Enclosure | |
| Frame Material | 1-1/4" (32 mm) thick-wall powder-coated steel tubing |
| Enclosure Lining | Premium velvet inner lining with durable vinyl exterior |
| Enclosure Flaps | Velvet flaps with hook-and-loop attachment for a seamless screen border |
| Collision Protection | Anti-collision padding along the top rail |
| Assembly | |
| Assembly Method | Tool-free, snap-together frame design with numbered poles |
| Estimated Setup Time | Approx. 45–60 minutes; two people recommended for easiest assembly |
Want a step-by-step walkthrough of setup? Download the Birdie 10 Assembly Manual (PDF) .
Prefer to watch the setup instead of reading it? Here’s a step-by-step Birdie 10 build video for reference.
Want a turnkey setup instead of piecing every component together? These bundle options let you pair the Birdie 10 Golf Simulator Enclosure with your choice of launch monitor, projector, and hitting mat so you can go from bare room to full simulator in a single checkout.
Plug-n-Play Bundle (Birdie 10 Option)
Turn your Birdie 10 into a full plug-n-play simulator package. Choose the Birdie 10 enclosure inside our Plug-n-Play Bundle, then add your preferred launch monitor, projector, hitting mat, and accessories for a single, pre-configured build.
Launch Monitor + Birdie 10 Enclosure Bundle
Use our Launch Monitor and Enclosure Bundle Builder to pair the Birdie 10 with your ideal launch monitor (Garmin R50, VTrack, and more), then add optional projector and hitting mat upgrades—while saving off the combined price.
Need Help Choosing the Right Bundle?
Not sure which launch monitor or projector is the best match for your space, budget, or ceiling height? Our team builds Birdie 10 bays every week and can help you dial in the right configuration in a quick call or email.
